Ripple Analysis
Description:

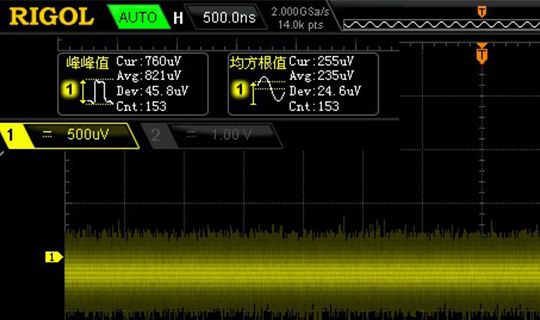

Power ripple is an important parameter to evaluate DC power supply. The ripple and noise consist of rectified main ripple, switching noise, PWM frequency ripple, and random noise. To make an accurate testing of ripples, it is required that the ripple of the test instrument itself is as low as possible and the test system has a minimal impact on the test results. One of the important features of RIGOL's oscilloscopes is its low noise floor. The DS2000A oscilloscope offers the industry's leading small range of 500 uV/div, making it ideal for testing small signals such as power ripple. The PVP2150/PVP2350 probe offers a 1:1/10:1 attenuation ratio. The 1X probe ratio can provide up to 35 MHz of bandwidth for direct ripple testing. UltraPower Analysis software provides ripple analysis function modules.
