Modulation Analysis
Description:
Modulation Analysis

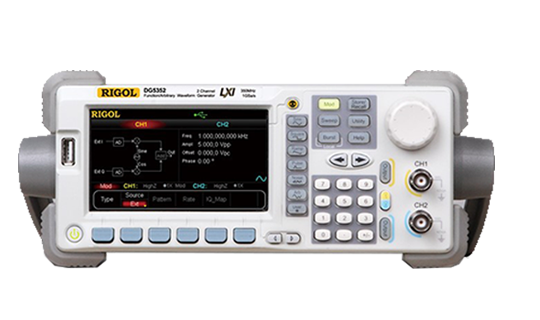

In order to improve the efficiency of the power supply, the switch power supply is mostly used to adjust the power factor of the FPC circuit, the gate drive pulse adjustable. In variable frequency drive systems, bipolar PWM drive pulses also need to be simulated, tested and validated. RIGOL's various arbitrary waveform generators can produce a variety of pulse-width modulation signals, and when the two-channel output is completely isolated between channels, it is particularly suitable for the analog generation of various types of drive signals. The measuring trend mapping function of the oscilloscope can analyze the variation of the modulated signal.
Diagram:
Activities Scope:
//
