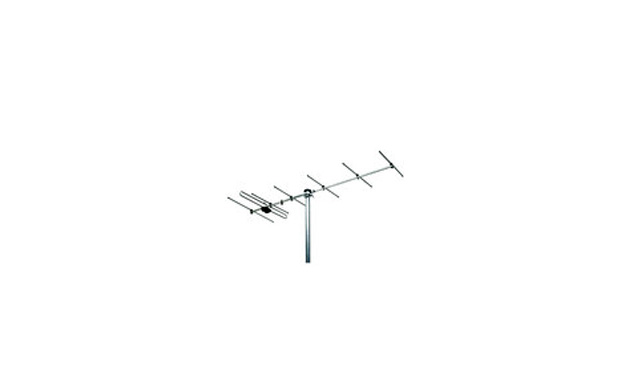

FA 47 - VHF III channel group antennas
- Channels: *E 5 - 6 / L 05 - 06, E 7-9 /L 07 - 08, E 9 - 12 /L 09 – 10
- Elements: 7
- Gain max: 10 dB
- Back / front ratio: 20 dB
- Half power beam width horizontal: 48°
- Half power beam width vertical: 58°
- Wind loading horizontal: 57/52/46 N
- Wind loading vertical: 86/81/73.5 N
- Length: 1680-1980 mm
- Connection: 75 Ω, F-type-socket
- Packing unit: 1 piece, 20 dm³, 1.5 kg
