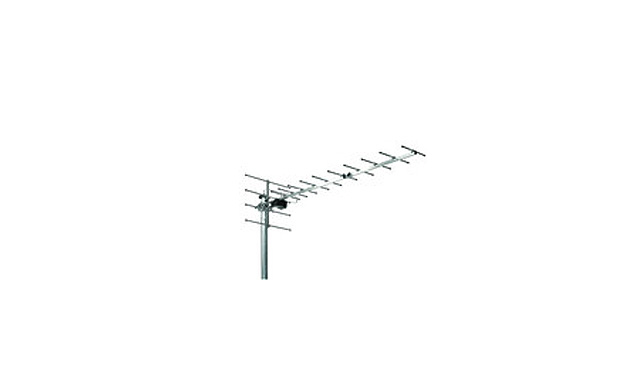

FA 49 - VHF III channel group antennas
- Channels: *E 5 - 6 / L 05 - 06, E 7-9 /L 07 - 08, E 9 - 12 /L 09 – 10
- Elements: 9
- Gain max: 11.5 dB
- Back / front ratio: >20 dB
- Half power beam width horizontal: 44°
- Half power beam width vertical: 51°
- Wind loading horizontal: 60/61/55 N
- Wind loading vertical: 118/108/100 N
- Length: 2380-2840 mm
- Connection: 75 Ω, F-type-socket
- Packing unit: 1 piece, 20 dm³, 1.9 kg
