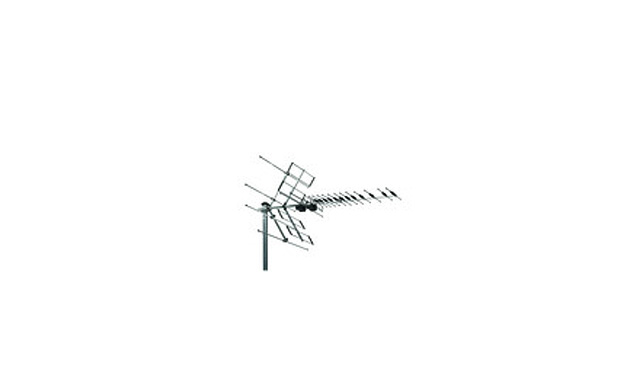

EA 34 - VHF-UHF multiband antennas
- Polarization: Horizontal. Mast clamp inclinable
- Reception range / channels: VHF III E 5-12 L 05-10/UHF E 21-69
- Elements: 6 / 36
- Gain max: 6.5 dB / 12.5 dB
- Back / front ratio: > 20 dB
- Half power beam width horizontal: 65° / 35°
- Half power beam width vertical: 92° / 40°
- Wind loading horizontal: 111.5 N
- Length: 1285 mm
- Connection: 75 Ω, F-type-socket
- Packing unit: 1 piece, bag, 65 dm³, 2.4 kg
