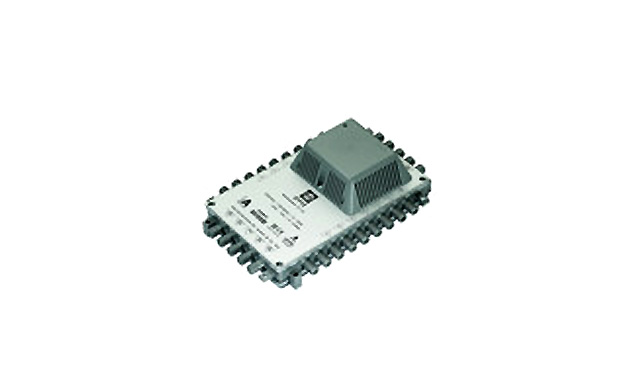

DY 12 / DY 16
- Inputs SAT + TERR: 4 + 1
- Frequency range TERR: 5-862 MHz
- Thru loss TERR: DY 12 (8.5 dB) ; DY 16 (11 dB)
- Frequency range SAT: 950-2400 MHz
- Gain SAT: 12 dB
- Output level SAT, 3rd ord. EN 50083-3: 103 dBμV 35 dB IMA
- Cascadable with: DY44A-48A
- Subscriber outputs: 12
- Frequency range: 5-2400 MHz
- Side loss TERR/SAT: 22/0 dB
- Isolation Subsc.-Subsc. TERR/SAT : >42/>30 dB
- Control signal: 13/18 V, 22 kHz
- Operating voltage: 230 VAC,50/60 Hz
- Power / current consumption: 9.5 W/150 mA
- LNB supply voltage : 14 VDC/350 mA
- Dimensions: 210x140x55 mm
- Packing unit: 1 piece, 2.3 dm³, 1.13 kg
- Shipping package: 5 pieces, 14.5 dm³, 6.05 kg
