TCD200

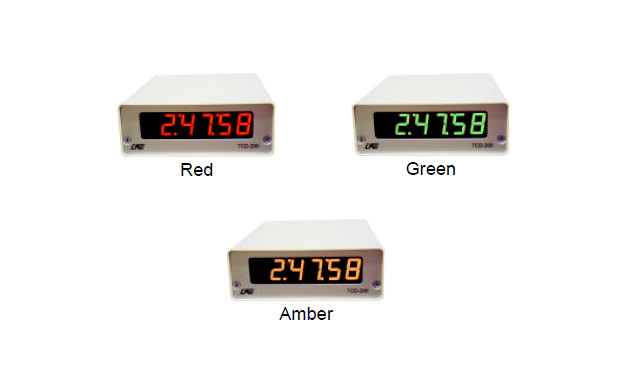

The TCD200 is a versatile, multi-featured time code driven clock or date display. This unit decodes and displays all versions of SMPTE, EBU and IRIG-B time codes. The unit can standalone or be mounted in the RM4 rackmount kit. The TCD200 Time Code Display has 6 digits that are 0.6 inches (1.5cm) in height and LEDs that are available in 3 colors.
Feature:
- Syncs to IRIG-B, SMPTE, EBU (also 24 fps film and drop frame) time codes.
- With loss of time code, the unit will revert to an internal clock and will automatically resync when time code becomes available.
- IEEE Standard 1344 – Compliant
- -11.5 to +12 hour time zone offsets in 30 minute increments
- Daylight saving time - US and Canada standard
- Up/down counter mode
- Available as a slave time code display
- Automatic input level control
- All functions are controllable via RS-232
