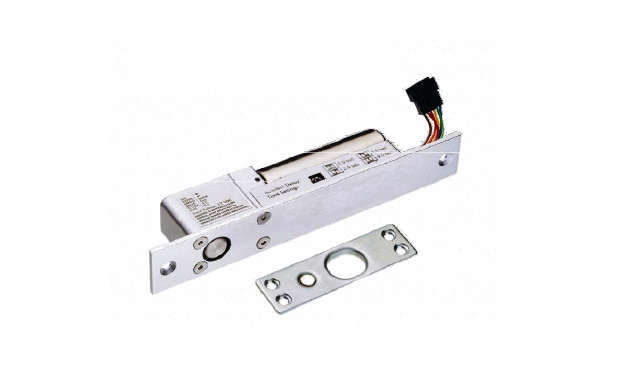

elock-B100
Elock-B100 Electric Bolt locks offer a choice of mortice of surface installation application, allows remote access and exit control of wood, aluminium or steel, doors. Works with sliding, single-action, and double-action (swing-through) doors and gates.
Specification:
- Power Supply : DC 12V.
- Fail-safe type (Power to lock).
- Door sensor : N.C.
- Operation delay time : 0 sec., 2.5sec., 5sec., 9sec.
- Built-in delayed egress control point
- Operation current : 900mA, Holding current: 360mA
- Dimension :
+ FACE PLATE : 200mm(L) x 32mm(W) x 40cm(D)
+ STRIKE PLATE : 90mm(L) x 26mm(W) x 2mm(D)
+ BOLT : 16mm(Throw) x 15.5mm(Diameter)
