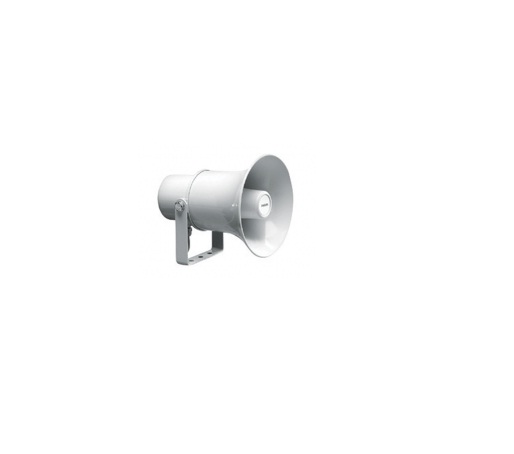

Loa nén 15/10W Bosch LBC3481/12
Max. power 15 W
Rated power (PHC) 10 W (10 - 5 - 2.5 W)
Sound pressure level at rated power/1 W 113 dB/103 dB (SPL)
(at 1 kHz, 1 m)
Effective frequency range (-10 dB) 500 Hz to 7 kHz
Opening angle (at 1 kHz/4 kHz, -6dB) 160°/50°
Rated voltage 100 V
Rated impedance 1000 Ω
Ambient temperature range -25 to +55 °C
Water- and dust protected acc. to IEC 60529 IP 65
Safety acc. to EN 60065
Connection 4-wire cable, 2 m long
Dimensions
aperture dia. 156 mm (6.14 in)
overall length 184 mm (7.24 in)
Colour Light grey (RAL 7035)
Weight 1.25 kg (2.75 lb)
