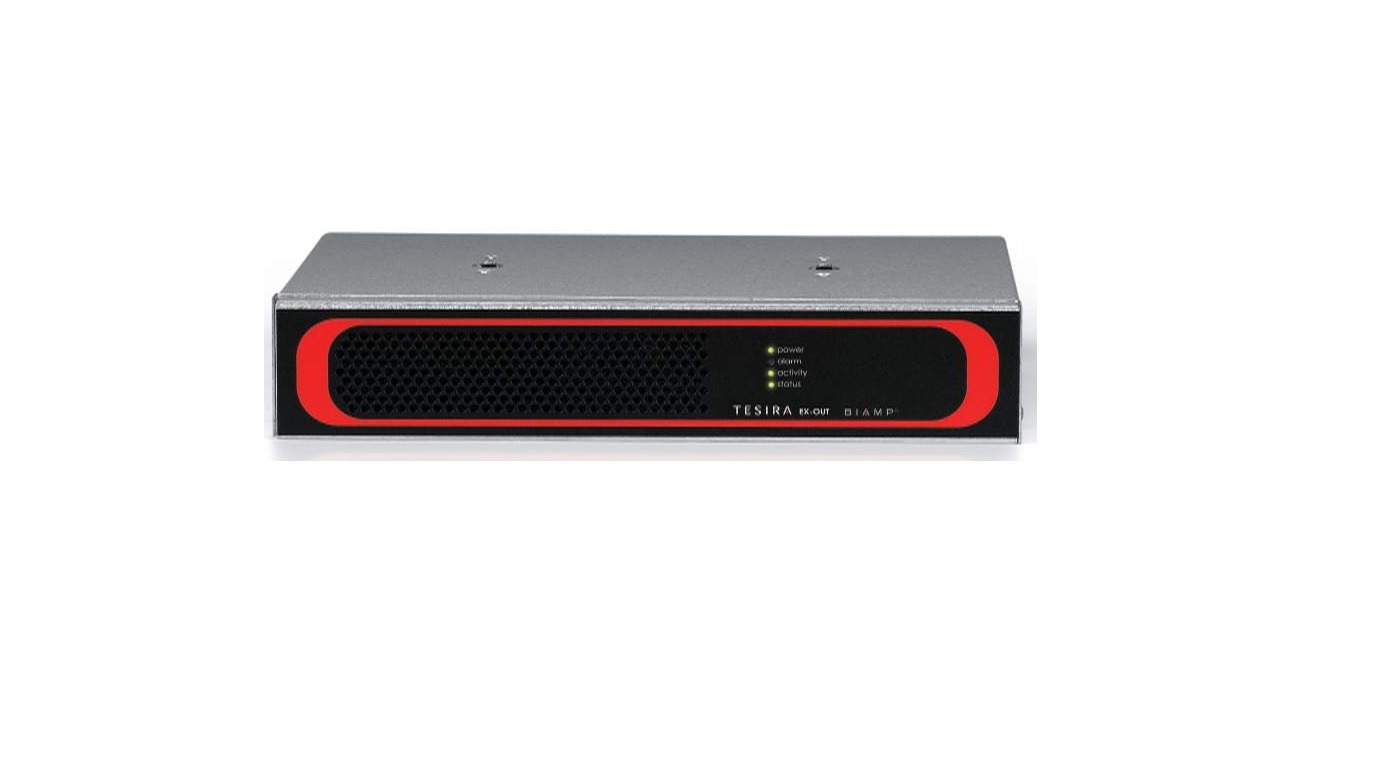

EX-OUT Tesira Expanders
The Tesira EX-OUT is a half-rack expander box for use with Tesira SERVER, SERVER-IO and TesiraFORTE AVB devices. The EX-OUT is a 4-channel line level output expander. The expander communicates with the Tesira AVB network for audio networking, configuration and control and is powered by PoE+.
• 4 channels of balanced mic line level output
• -100 to +12dB fader range for level
• Signal invert for reverse polarity
• Selectable full-scale output reference level (24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -31dBu) for best interface/performance
• Audio and control networking over AVB
• Powered by PoE+
• Plug-in barrier strip connectors
• Front panel LEDs for device status indications
• Half-rack chassis
• RoHS compliant and AES grounded
