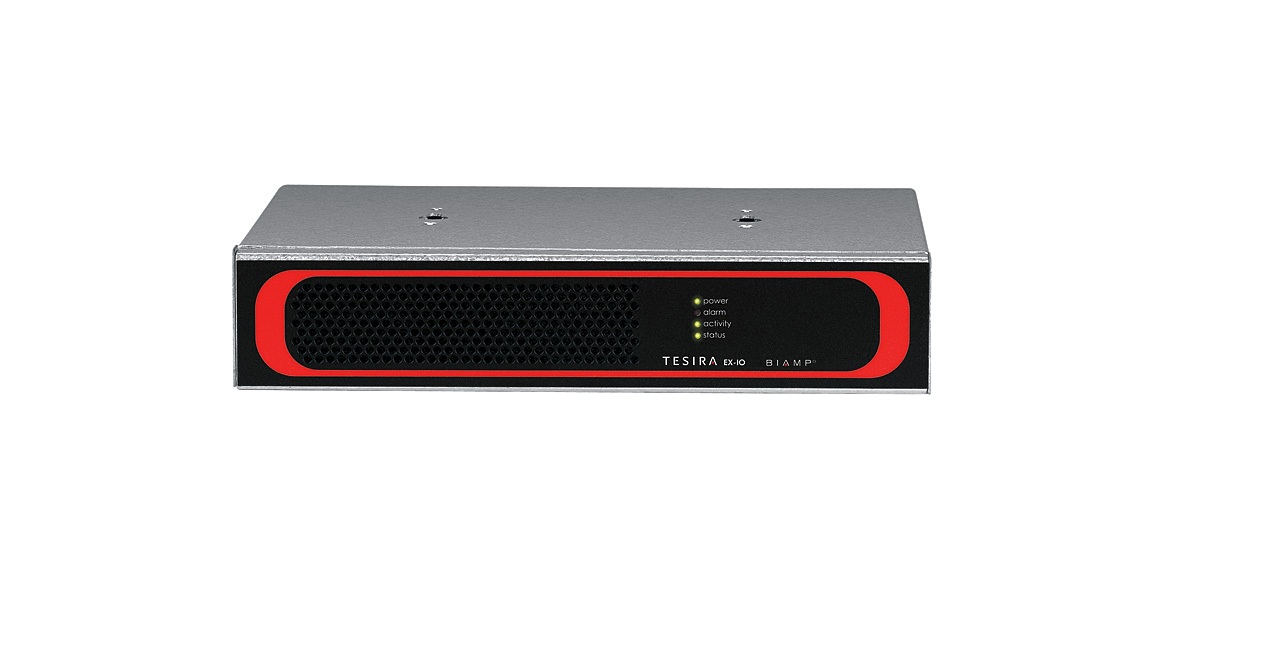

EX-IO Tesira Expanders
The Tesira EX-IO is a half-rack expander box for use with Tesira SERVER, SERVER-IO and TesiraFORTE AVB devices. The EX-IO is a 4-channel input and output expander. The expander features two channels of mic/line level input and 2 channels of mic level output. The expander communicates with the Tesira AVB network for audio networking, configuration and control and is powered by PoE+.
• 2 channels of balanced mic or line level input
• 2 channels of balanced line level output
• 0–66 dB gain, adjustable in 6dB increments on input
• +48V phantom power on inputs
• Selectable full-scale output reference level (24dBu, 18dBu, 12dBu, 6dBu, 0dBu, -31dBu) for best interface/performance
• Powered by PoE+
• Half-rack chassis
• RoHS compliant and AES grounded
