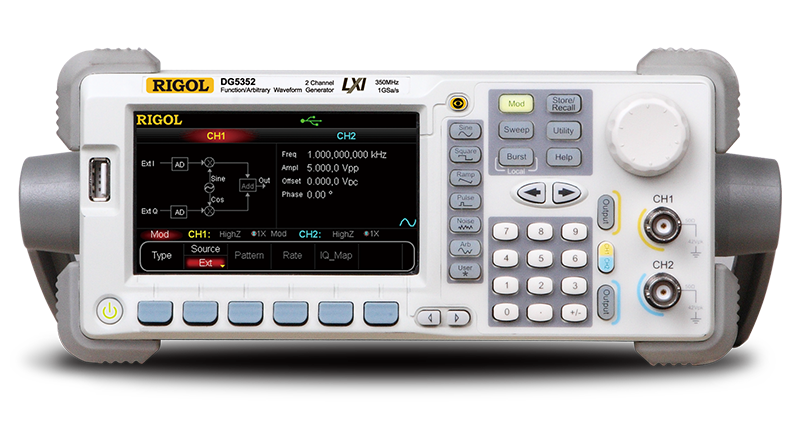

DG5000 Series
- 4.3 inches, 16M true color TFT LCD.
- 350 MHz, 250 MHz, or 100 MHz or 70 MHz maximum sine output frequency, 1 GSa/s sample rate, 14 bits resolution.
- Single/dual - channel models. The dual – channel model supports frequency and phase coupling.
- The 16+2 channels digital output module (optional) together with the analog channel can rebuild the more mixed signals in daily practice.
- Support an external power amplifier (optional) that can be configured online.
- Support frequency hopping(optional) with hopping interval up to 80 ns and arbitrary editing frequency hopping patterns.
- 14 standard waveform functions: Sine,Square,Ramp, Pules, Noise, Sinc,Exponential Rise, Exponential Fall, ECG, Gauss, Haversune, Lorentz,Dual Tones and DC.
- Rise/Fall Time of the Pulse could be adjusted separately.
- Enable to edit arbitrary waveform up to 512 kpts and output arbitrary waveforms up to 128 Mpts.
- Support AM,FM,PM,ASK,FSK,PSK and PWM modulations.
- Support user-defined IQ vector signal modulation and IQ baseband/IF source output.
- Support Frequency Sweep and Burst output.
- Abundant I/O: waveform output, synchronous signal output, modulation input, 10 MHZ clock input/output, trigger input/output.
- Enable to store and recall waveform data and instrument state, and support versatile file types. Standard configuration with 1GBytes flash memory.
- Plenty of standard interface: double USB Host, USB Device, LAN, and GPIB (IEEE-488.2)
- Seamlessly interconnected with RIGOL USB-TMC digital oscilloscope for loading and reappearing waveform.
- Support USB flash device storage for FAT files.
- Support PicBridge printer.
- Provide security lock hole.
- Support emote control through 10/100M Ethernet web.
- Conform to LXI-C instrument standards (version 1.2)
- Provide Chinese and English built-in help and input methods.
- Provide powerful waveform editing PC software.
