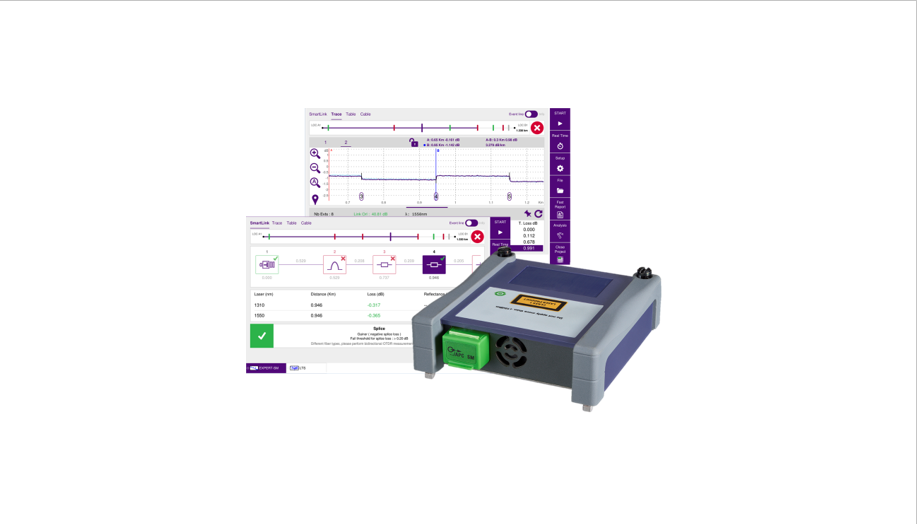

OTDR Modules – 4100-Series for CellAdvisor 5G, OneAdvisor-800, T-BERD/MTS-2000, -4000 V2, -5800 Platforms
VIAVI 4100-Series OTDR modules enable field technicians to rapidly, reliably, and cost-effectively install, turn up, and troubleshoot any optical network architecture – The optical performances of the 4100-Series OTDR modules combined with the complete suite of T-BERD/MTS, CellAdvisor 5G or OneAdvisor-800 platforms testing features ensure that any testing job is done right the first time.
Benefits
- Familiar touch gesture control user interface with assistant apps to guide techs through instrument usage
- Module portability allows migration of fiber test capabilities between different VIAVI platforms
- Wide range of module performance to match any network applications with fast, error free testing
- Consolidated reporting for all wavelengths tested reduces volume of test results to manage by 50%
- Avoids the risk of live signal interference or damage to the optical transmitter when performing OTDR test with instantaneous automatic traffic detection
Applications
- Construction, commissioning and troubleshooting of Metro and Long-Haul networks
- Tier-2 certification and maintenance of Enterprise and Data Center networks
- High fiber count/ribbon cables with automated MPO switching
- Characterization and troubleshooting of FTTA fiber cables (macro cell towers, wireless backhauls, distributed antenna systems and cloud radio access)
- Certifcation and troubleshooting of FTTH-PON networks (fiber distribution and drop cables verification and test through splitters) with support for un-balanced splitter architectures
Key Features
- SmartLink Mapper (SLM) icon based results view
- Up to 45 dB dynamic range and 256,000 acquisition points
- PON optimized to test through up to a 1x256 splitter (FTTH-SLM)
- Combined singlemode/multimode (Quad) version
- Single-/Dual-/Tri-wavelength versions with 1310, 1550, 1625, and 1650nm
- Single connector port for 1310, 1550 and in-service 1625 or 1650nm filtered wavelengths dedicated for in-service troubleshooting
- Integrated light source and power meter on OTDR port
- Available in FiberComplete version for automated bi-directional OTDR, IL and ORL measurements
