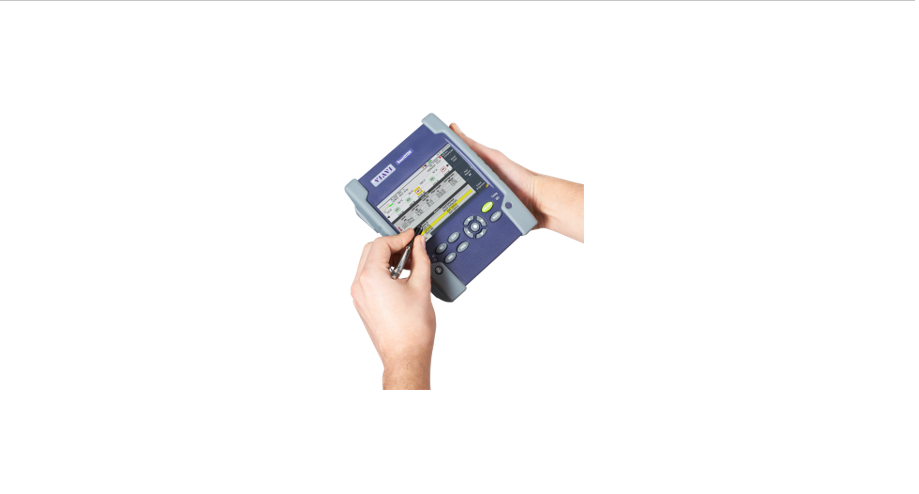

SmartOTDR Handheld Fiber Tester
Benefits
- Ensures fast and easy measurements
- One touch operation, automatic analysis, and tailored OTDR user interface for different skill level
- Manage data from anywhere in the network
- Several connectivity options (3G/4G smartphones via USB and optional Bluetooth/WiFi) enable remote control as well as data and work-order transfers to-and-from tablets, smartphones, and computers.
- Reduces cost of ownership
- Three year warranty as standard coverage
- Optimizes field operations
- Light, ultra compact, hands-free design and an extended autonomy up to 20 hours
- Remotely coach and support field techs with Smart Access Anywhere (SAA)
Applications
- Characterize point-to-point access & metro fiber networks
- Qualify and troubleshoot FTTH/PON networks
- Qualify and troubleshoot singlemode FTTA/DAS front haul
Key Features
- Single-/dual-/tri-wavelength versions with 1310, 1550, and in-service 1625 or 1650 nm wavelengths
- PON optimized to test through a 1x128 splitter
- Automated fiber inspection pass/fail analysis software
- Integrated CW light source on OTDR port
- Built-in optical power meter and VFL options
- Large 5-inch touch screen display
