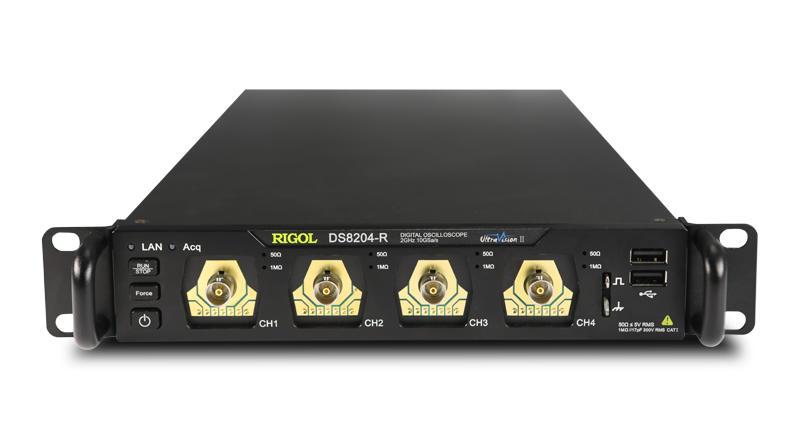

Digital Oscilloscope DS8000-R series
-Analog channel bandwidth: 350 MHz, 1 GHz, and 2 GHz
-Up to 10 GSa/s real-time sample rate (for DS8104-R/DS8204-R), 5 GSa/s (for DS8034-R)
-4 analog channels, 1 EXT input channel
-Standard memory depth up to 500 Mpts
-High waveform capture rate (over 600,000 wfm/s)
- Low jitter, multiple-device synchronization (<200 psRMS, typical)
-High-speed data communication interface (10 GE SFP+), ensuring the reliable transmission of massive data
-Integrates 6 independent instruments into 1, including digital oscilloscope, spectrum analyzer, AWG (option), digital voltmeter,
- 6-digit counter and totalizer, and protocol analyzer (option)
-Available to be extended to 512 channels, supporting synchronous acquisition (with the multi-channel synchronization module)
-Real-time eye diagram and jitter analysis software (option for DS8104-R/DS8204-R, but unavailable for DS8034-R)
-Built-in advanced power analysis software (option)
-Operating temperature low below -40℃, available to be used for signal monitoring in some special conditions
-Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), 10 GE SFP+, HDMI, TRIG OUT, 10 MHz In, and 10 MHz Out
-Web Control remote command
-Compact and thin design, save rack space, 1U rack mount kit (standard)
-Software development kit available for users to meet their customized development according to their specific scenarios
-Easy-to-use on-site multi-channel synchronization calibration kit, enabling you to view multiple channels synchronously
