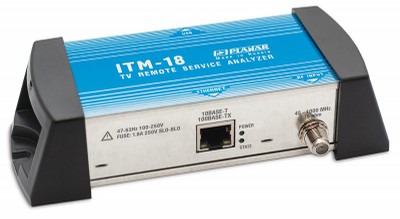

ITM-18 TV Remote Service Analyzer
ITM-18 TV Remote Service Analyzer is designed for measurement of TV channel parameters and transmission of measurement results to a remote PC using TCP/IP local area network. The Analyzer is used in the cable TV networks for the purposes of continuous automatic monitoring of signal parameters.
level measurements for analog channels
Level, MER and BER measurements for ITU-T J.83 Annex A/B/C, including DVB-C standard channels
Channel plan operation
Measurement results storage in non-volatile data logger
ViewRSA Software allows operating up to 100 analyzers simultaneously, storing measurement results in the data logger, real-time displaying of the measurement process, checking measurement results automatically against user-defined limit plans, displaying measurement results history in graphical and table formats
Web-browser provides for access to ViewRSA software compatible with CIU-00X Series Analyzers
Firmware updating and network interface setting via Ethernet port
Monitoring systems
Operating ViewRSA monitoring system:
measurement results reading and saving to data base
real-time display of measurement process
automatic measurement results checking against user-defined limit plans
error notification system: visual, sound alarm, e-mailing, executing user-defined applications
viewing measurement results history in tables and graphs
built-in WEB-browser for remote access to program
Operating monitoring systems via SNMPv1 protocol:
channel plan and limit plan setting
measurement process control (start, stop, measurement interval setting)
sending traps with information on channel errors
traps can be sent to several SNMP-agents
real-time display of measurement results
