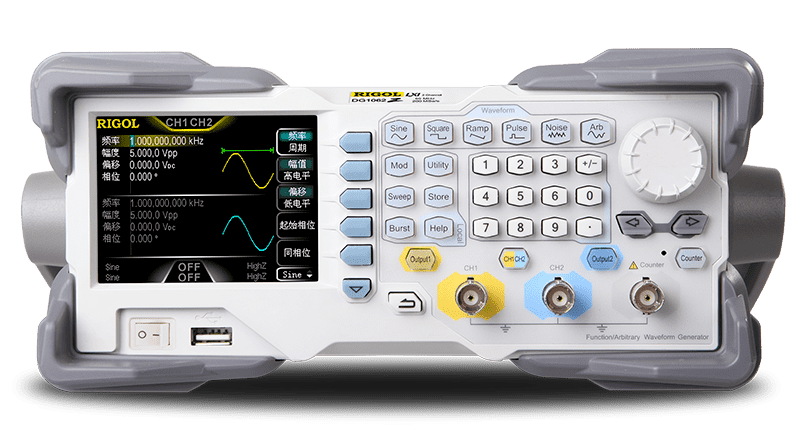

DG1000Z Series
SiFi (Signal Fidelity) for 100% waveform replication
2Mpts or 8Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length
Standard 2 full functional independent channels
±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter
Built-in 8 orders harmonics generator
Built-in 7 digits/s counter up to 200MHz
160 built-in pre-edited waveforms
Intuitive arbitrary waveform editing software
Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM
DG1000Z series function/arbitrary waveform generator is a multifunctional generator that combines many functions in one, including
Function Generator, Arbitrary Waveform Generator, Noise Generator,
Pulse Generator, Harmonics Generator, Analog/Digital Modulator and
Counter. As a multi-functional, high performance and portable generator,
it will be a new selection in education, R&D, production, test and etc
