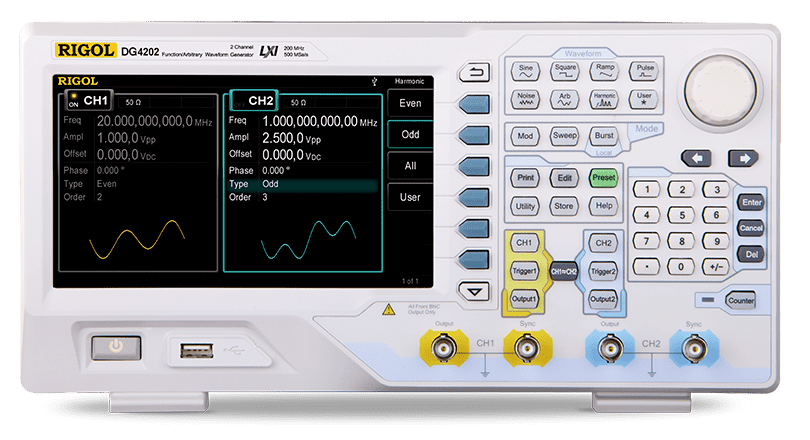

DG4000 Series
DG4000 series is a multifunctional generator that combines many functions in one, including Function
Generator, Arbitrary Waveform Generator, Pulse Generator, Harmonic Generator, Analog/Digital Modulator
and Counter. All the models have two channels with complete equivalent functions and precisely adjustable
phases.
Maximum output frequency: 200MHz, 160MHz, 100MHz, 60MHz
500MSa/s sample rate, 14 bit vertical resolution
Dual channel outputs with identical performance
2ppm high-frequency stability
-115dBc/Hz low phase noise
Versatile analog and digital modulation functions
150 built-in waveforms
7digits/s, 200MHz built-in Counter
Harmonic generator that can generate up to 16th order of harmonic (Std.)
Powerful waveform editing PC software
Connectivity: USB Host & Device, LAN
7 inch LCD display (800 × 480)
