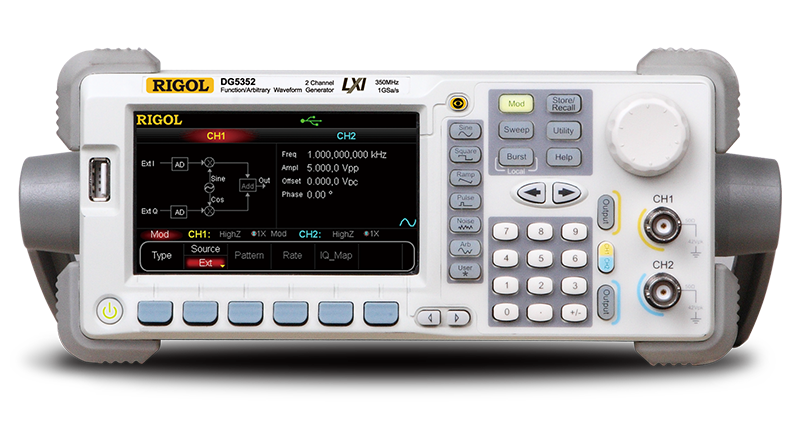

DG5000 Series
Dg5000 series has 6 functions, including any waveform generator, pulse generator, IQ baseband / if source, frequency hopping source, code generator and function generator. The series includes single and dual channel models. The functions of the two channels are completely equal, and the phase between channels is precisely adjustable.
Main Features:
4.3 inches, 16M true color TFT LCD.
350 MHz, 250 MHz, 100 MHz or 70 MHz maximum sine output frequency, 1 GSa/s
sample rate, 14 bits resolution.
Single/dual-channel models. The dual-channel model supports frequency and
phase coupling.
The channels of the dual-channel model are isolated from each other.
The 16+2 channels digital output module (optional) together with the analog
channel can rebuild the more mixed signals in daily practice.
Support an external power amplifier (optional) that can be configured online.
Support frequency hopping output (optional) with hopping interval up to 80ns
and arbitrary editing of frequency hopping patterns.
14 standard waveform functions:
Sine, Square, Ramp, Pulse, Noise, Sinc, Exponential Rise, Exponential Fall, ECG,
Gauss, Haversine, Lorentz, Dual Tones and DC.
Rise/Fall Time of the Pulse could be adjusted separately.
Enable to edit arbitrary waveform up to 512 kpts and output arbitrary waveforms
up to 128 Mpts.
Support AM, FM, PM, ASK, FSK, PSK and PWM modulations.
Support user-defined IQ vector signal modulation and IQ baseband/IF source
output.
Support Frequency Sweep and Burst output.
