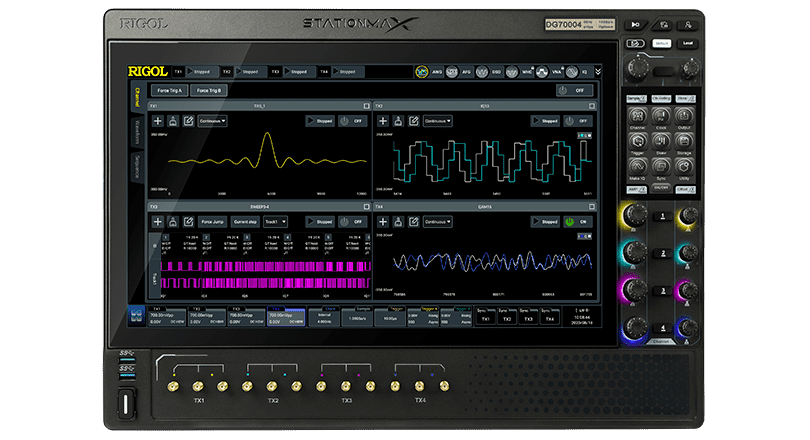

DG70000 Series
Up to 5 GSa/s sample rates (12 GSa/s interpolated)
• 4-channel synchronization for a single instrument
• -70 dBc SFDR
• 16-bit vertical resolution
• 1.5 GSample waveform memory depth per channel
• Direct generation of signals with carriers up to 5 GHz
• Generate arbitrary waveforms point by point; recover the signal without distortion
• Total jitter low as 10 psp-p, random jitter low as 350 fsrms
• Sample rates adjustable from 100 Sa/s to 12 GSa/s
• High-precision synchronization with channel-to-channel skew time low as ± 10 ps
• Support advanced sequence to define outputs of various complex waveforms
• Multiple interfaces available: LAN, USB3.0, HDMI
• Support the import of external waveform files
• 15.6-inch angle-adjustable display
