DP800 Series

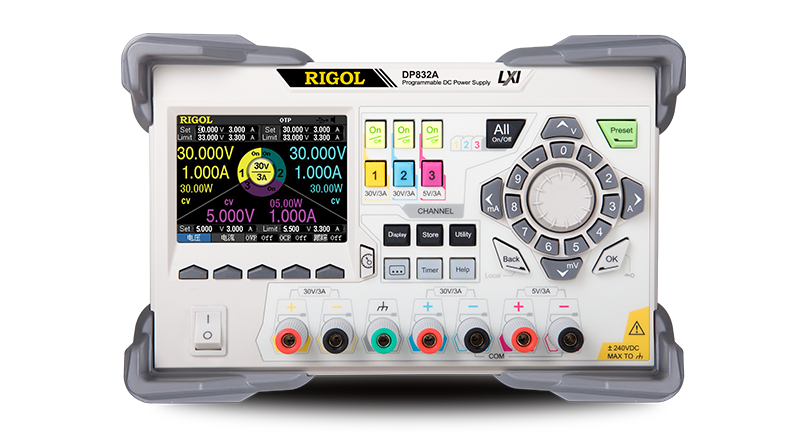

DP832A/DP832: 3 outputs, 30V/3A || 30V/3A, 5V/3A, total power up to 195W
DP831A/DP831: 3 outputs, 8V/5A || 30V/2A, -30V/2A, total power up to 160W
DP822A/DP822: 2 outputs, 20V/5A || 5V/16A, with remote Sense, total power up to 180W
DP821A/DP821: 2 outputs, 60V/1A || 8V/10A, with remote Sense, total power up to 140W
DP813A/DP813: 1 output, 8V/20A (Low Range), 20V/10A (High Range),
with remote Sense, total power up to 200W
DP811A/DP811: 1 output, 20V/10A (Low Range), 40V/5A (High Range),
with remote Sense, total power up to 200W
Low ripple and noise:
DP832A/DP832/DP831A/DP831/DP822A/DP822/DP821A/DP821: <350uVrms/2mVpp
DP813A/DP813/DP811A/DP811: <350uVrms/3mVpp
Excellent linear regulation rate and load regulation rate
Fast transient response time: <50μs
Some channels are isolated
Standard OVP/OCP/OTP protection functions
Standard timing output
Built-in V,A,W measurements and waveform display
Independent control for each channel
Support more advanced functions: timer and delay output(standard),
recorder/analyzer/monitor/trigger(standard for "+A" models and optional for other models)
3.5-inch TFT display
Various interfaces: USB Host&Device(standard), USB-GPIB (optional),
LAN/RS232/Digital IO(standard for "+A" models and optional for other models)
