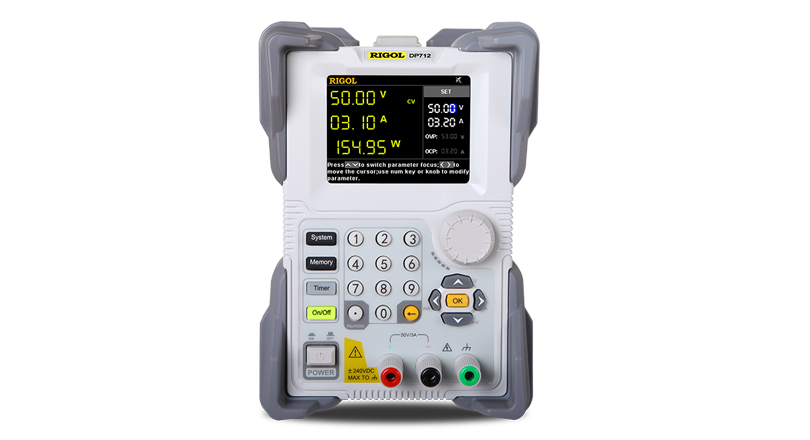

DP700 Series
DP711: single output, 30 V/5 A, total power up to 150 W
DP712: single output, 50 V/3 A, total power up to 150 W
Low ripple and noise:
DP711: <500 μVrms/3 mVpp; <2 mArms
DP712: <500 μVrms/4 mVpp; <2 mArms
Excellent load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA
Transient response time: <50 μs
1 mV/1 mA resolution (optional)
Sound overvoltage/overcurrent/overtemperature protection, with the response
time for the overvoltage protection less than 10 ms
External trigger function supported, enabling synchronous output for
multiple devices
Timing output supported (10 ms to 99999 s) for up to 2,048 groups
3.5-inch TFT-LCD; compact and elegant; easy to use
Front panel locking and any specified key locking supported
RS232 interface communication supported
