Microwave Signal Generator APSIN 20G
The APSIN20G is a low-noise and fast-switching microwave signal generator covering a frequency range from 10 MHz (optionally 100 kHz) up to 20 GHz. The lower limit can be expanded to 100 kHz by the optional frequency extension 100 kHz to 10 MHz.
The APSIN20G a wide and accurately levelled output power range and high spurious suppression. Advanced frequency synthesis with fractional-N divider makes for low SSB phase noise and micro-Hz frequency resolution.
The APSIN20G includes AM, DC-coupled, low distortion wideband-FM, PM, FSK and PSK, frequency chirp, and fast pulse modulation as standard. Internal modulations sources are available. All modulation modes of the APSIN20G can be combined. This allows the generation of complex modulation signals for modern communication and location systems. The combination of pulse modulation and FM simulates Doppler effects or chirp signals. Simultaneous AM and pulse modulation provides the types of signal occurring in pulse radar applications with rotating antenna. The combination of FM and AM can be used to check fading effects of FM receivers
The APSIN20G allows fast analog and digital sweeps including flexible list sweeps, where frequency, power and dwell times can be set individually. A flexible triggering capability simplifies synchronization within test environments.
The APSIN20G operates with an ultra-stable temperature compensated 100 MHz reference (OCXO) to ensure minimal drift, and can be phase-locked to almost any stable external reference in a range from 1 to 200 MHz
The APSIN20G support various standard interfaces such as USB-TMC, LAN, and GPIB.

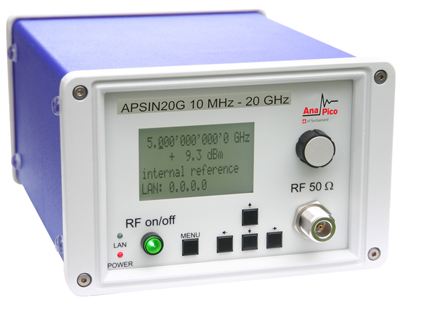

Front panel:
1. RF output: N female
2. RF on/off button
3. Rotary knob
4. Menu and arrow keys
Rear panel:
1. Trigger input: BNC female
2. Function output: BNC female
3. External reference input: BNC female
4. Internal reference output: BNC female
5. FM/PM modulation input: BNC female
6. AM and Pulse modulation: BNC female
7. LAN connection: RJ-45
8. USB 2.0 host and device
9. GPIB: IEEE-488.2, 1987 with listen and talk (optional)
10. DC Power plug (6V, 2.5A)
11. DC power switch
It is targeted for applications where a high-quality CW microwave source with versatile modulation is required. It offers an alternative to expensive high-end microwave signal generators, where small size and excellent microwave performance at an attractive cost is required.
Applications for the APSIN20G include:
R&D low noise signal source
· Production testing (industry-leading switching times; high dynamic range)
· Service and maintenance (battery operation)
· Signal simulation (Radar, WiMax, UWB)
· Aerospace & Defence (Pulse modulator, Chirps)
General Characteristics
Remote programming interfaces
Ethernet 100BaseT LAN interface,
USB 2.0 host & device
GPIB (IEEE-488.2,1987) with listen and talk (optional)
Control language SCPI Version 1999.0
Power requirements 6 VDC; 20 W maximum
Mains adapter supplied: 100-240 VAC in/ 6V 2.5A DC out
Operating temperature range 0 to 45 °C
Storage temperature range –40 to 70 °C
Operating and storage altitude up to 15,000 feet
Safety/EMC complies with applicable Safety and EMC regulations and directives.
Weight ≤ 2.5 kg (6 lbs) net, ≤ 4 kg (8 lb.) shipping
Dimensions 106 mm H x 172 mm W x 220 mm L [4.21 in H x 6.77 in W x 8.66 in L]
Recommended calibration cycle 24 months
Options
· B3: battery module
· PE: Extended power range down to <-90 dBm)
· PE2: Extended power range (down to <-120 dBm)
· GPIB: IEEE-488.2,1987 programming interface
· TB: improved internal reference stability
· LF frequency extension to 100 kHz 19’’ rackmount enclosure (contact AnaPico for more information)
