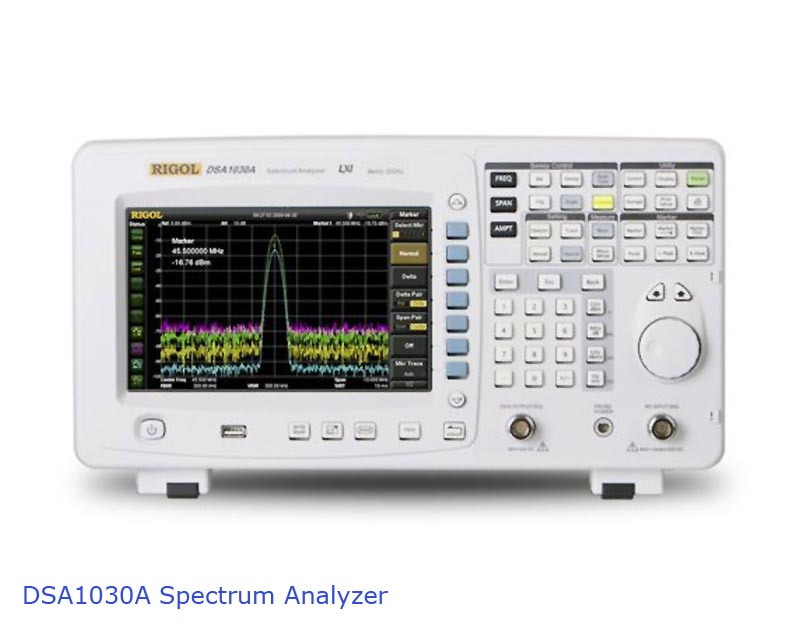

Rigol DSA1030A spectrum analyzer, (9 KHz ~ 3 GHz)
9 kHz to 3 GHz Frequency Range
-148 dBm Displayed Average Noise Level (DANL)
-88 dBc/Hz@10 kHz Phase Noise (typ.)
Total Amplitude Uncertainty <1.0 dB
10 Hz Minimum Resolution Bandwidth (RBW)
Standard with Preamplifier
3 GHz Tracking Generator (optional)
Built-in lithium battery that can provide 3 hours continuous operation (optional)
Breadth of measurement functions and automatic settings provide ultimate flexibility
8.5 inch (800×480) widescreen display with clear, vivid, and easy to use graphical interface
Various interface options such as LAN\USB host, USB device, VGA or GPIB (optional)
Compact design with a weight of only 13.7 lbs (without battery)
Hãng sản xuất : Rigol - China
