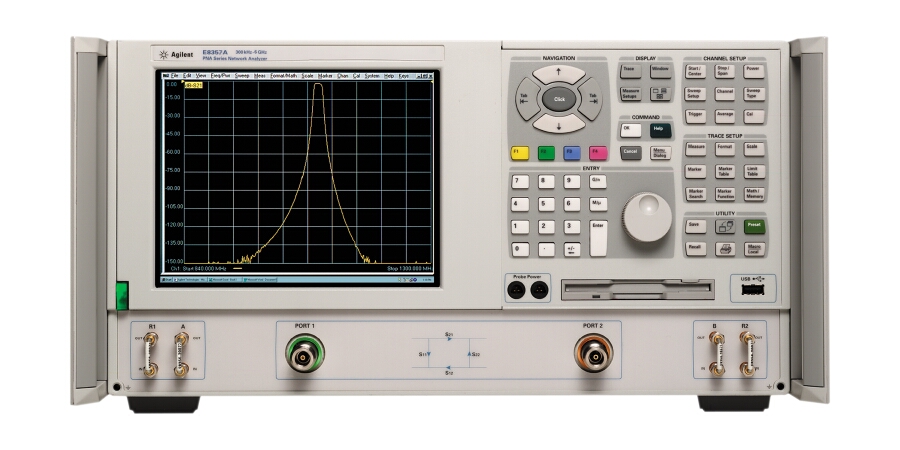

Agilent E8356A, E8357A, E8358A (PNA) Vector Network Analyzers
- E8356A: 300 kHz to 3 GHz
- E8357A: 300 kHz to 6 GHz
- E8358A: 300 kHz to 9 GHz
- 128 dB dynamic range at test port
- 143 dB dynamic range with direct receiver access
- 35 µs/point sweep speed
- COM/DCOM and SCPI programming
- TRL/LRM calibration supported
- USB controlled electronic calibration (ECal)
- Source attenuators, bias-tees and direct receiver access standard
- Compatible with Agilent's Balanced Component Measurement and Noise-Parameter Systems
- Windows 2000™ operating system
