DP900 Series
Three models available in the series:

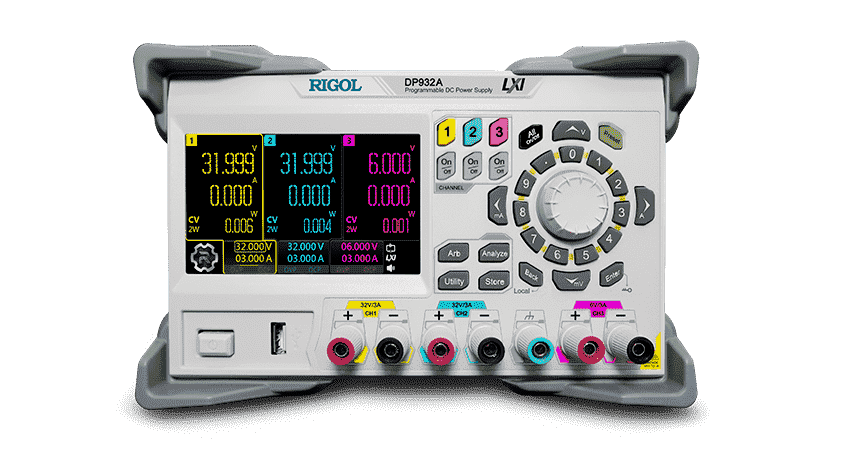

- DP932A (Standard): 32 V/3 A || 32 V/3 A || 6 V/3 A
- DP932U (University-with safety sockets): 32 V/3 A || 32 V/3 A || 6 V/3 A
- DP932E (E-commerce): 30 V/3 A || 30 V/3 A || 6 V/3 A
• 3 electrically isolated independent channels with a maximum total power of up to 210 W
• 4.3-inch LCD color touch screen
• Front-panel safety sockets available on some models
• Internal series/parallel connections for CH1 and CH2
• Excellent programming/readback accuracy
• Transient response time <50 μs
• Low output ripple and noise <350 μVrms/2 mVpp
• Command processing time <10 ms
• Three rack-units (3U), 1/2-rack form factor
• PC control
• Timing output, data logging and analysis
• A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic
waveforms
• Over voltage, over current, and over temperature protection
• Various interfaces available: USB, LAN, and Digital I/O
